Waterproofing Membrane Dam Canal Retention Pond Liner

The service life can reach 50 years, with characteristics such as UV resistance, chemical corrosion resistance and oxidation resistance. It will not decompose under high temperature exposure or acid and alkali corrosion, and can maintain its original performance.

The size and thickness can be customized. Special welding machines can be used for welding. High temperature welding ensures that the membrane is permanently and completely bonded, and there is no leakage at the seams.

Contact Now E-Mail Telephone WhatsApp

Product Details

Waterproofing Membrane Dam Canal Retention Pond Liner has excellent waterproof performance and is 100% waterproof. As the bottom liner of ponds, reservoirs, dams, ditches and landfills, it can completely isolate water from soil and prevent water from seeping into the ground.

Geomembrane

Why Choose Us？

Bemax Geomembrane

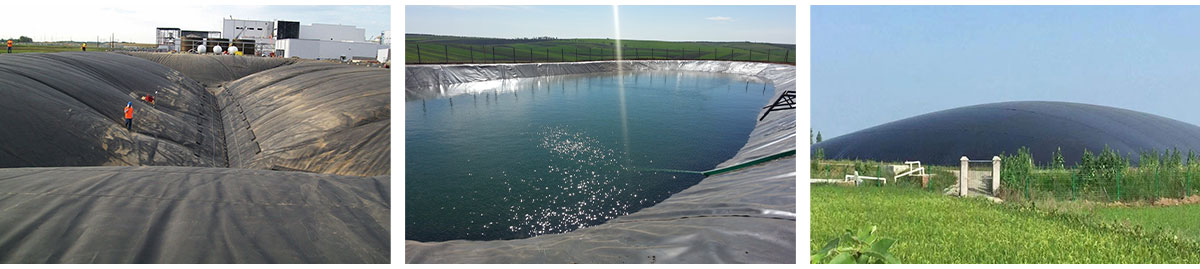

Applications

Bemax® HDPE geomembranes are versatile materials that have a variety of applications in several fields, particularly where liquid or waste containment is essential.

Here are some of the most common applications:

Landfills: HDPE geomembranes are often used as liners in landfills to prevent leachate, a liquid that contains environmentally harmful substances, from contaminating the groundwater.

Ponds and Lagoons: They are used as liners in decorative ponds, fish ponds, lagoons, and artificial lakes to prevent water leakage into the ground.

Reservoirs and Tanks: They are also used to line reservoirs, tanks, and other storage facilities that hold water, other liquids, or even gases.

Canals: HDPE geomembranes are often used to line canals, ditches, or other waterways to prevent erosion and water loss.

Mining: In the mining industry, they are used to line tailings ponds and heap leach pads to prevent contamination of the surrounding environment.

Agriculture: In agriculture, they can be used in irrigation ditches, farm ponds, or even to line manure lagoons.

Construction: They can be used as a moisture barrier under concrete slabs or inside basement walls to prevent moisture intrusion.

Environmental Remediation: They are used in environmental remediation projects to contain contaminated materials or to prevent contaminants from spreading to adjacent areas.

Oil and Gas industry: They can be used for secondary containment around fuel storage tanks to prevent any potential leaks from contaminating the surrounding environment.

Aquaculture: In aquaculture, HDPE geomembranes are used to line fish or shrimp ponds to maintain water quality and prevent diseases.

Geomembrane

Technical Parameters

Properties	Test Method	Test Value							Testing Frequency (minimum)
Properties	Test Method	0.75 mm	1.00 mm	1.25 mm	1.50 mm	2.00 mm	2.50 mm	3.00 mm	Testing Frequency (minimum)
Thickness - (min. ave.) - mm • owest individual of 10 values - %	D 5199	nom. - 10							per roll
	D 5199	nom. - 10							per roll
Formulated Density (min. ave.) - g/cc	D 1505/D 792	0.940							90,000 kg
Tensile Properties(1) (min. ave.)	D 6693	/							9,000 kg
• yield strength - kN/m • break strength - kN/m • yield elongation - % • break elongation - %	Type IV	11 20 12 700	15 27 12 700	18 33 12 700	22 40 12 700	29 53 12 700	37 67 12 700	44 80 12 700	9,000 kg
Tear Resistance (min. ave.) - N	D 1004	93	125	156	187	249	311	374	20,000 kg
Puncture Resistance (min. ave.) - N	D4833	240	320	400	480	640	800	960	20,000 kg
Stress Crack Resistance (2) - hr.	D 5397 (App.)	500							per GRI GM- 10
Carbon Black Content (range) - %	D 4218⑶	2.0 -3.0							9,000 kg
Carbon Black Dispersion	D 5596	note (4)							20,000 kg
Oxidative Induction Time (OIT) (5) (min. ave.)		/							90,000 kg
(a) Standard OIT - min.	D3895	100
(b) High Pressure OIT - min.	D5885	400
Oven Aging at 85°C (5) (6)	D5721	/							per each formulation
(a)Standard OIT (min. ave.) - % retained after 90	D3895	55
(b) High Pressure OIT (min. ave.) - % retained after 90 days	D5885	80
UV Resistance (7)	D 7238	/							per each formulation
(a) Standard OIT (min. ave.)	D 3895	N. R.(8)
(b) High Pressure OIT (min. ave.) - % retained after 1600 hrs (9)	D5885	50

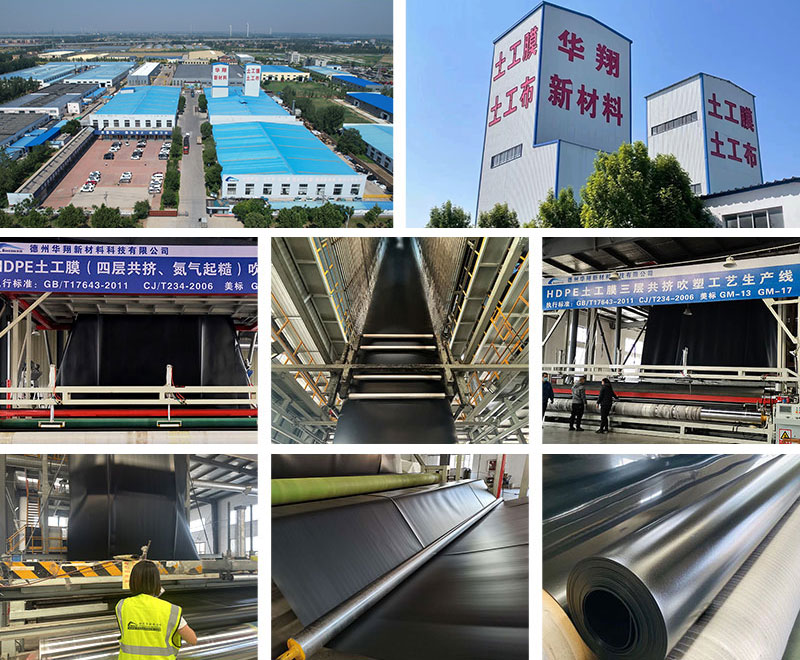

Bemax Geomembrane Factory

Geomembrane Factory

FAQ

Q: Are you a factory or a trading company?

A: We are a professional manufacturer of geomembrane, geotextile, composite geomembrane and other products with more than 20 years of ISO9001 certification experience.
Q: Where is your factory? How can I visit?
A: Our factory is located in South head of Xingguo Street, Lingcheng District Economic Development Zone, Dezhou City, Shandong, China. You can take a plane to Jinan Yaoqiang International Airport, and then we can pick you up.
Q: Can I send samples before order confirmation?
A: Yes, if you need, we are happy to send free samples for your evaluation.
Q: How about the delivery time?
A: Generally within 5-10 days after receiving the deposit.
Q: Can you produce products according to customer requirements?
A: Of course, we are a professional manufacturer, welcome OEM and ODM.
